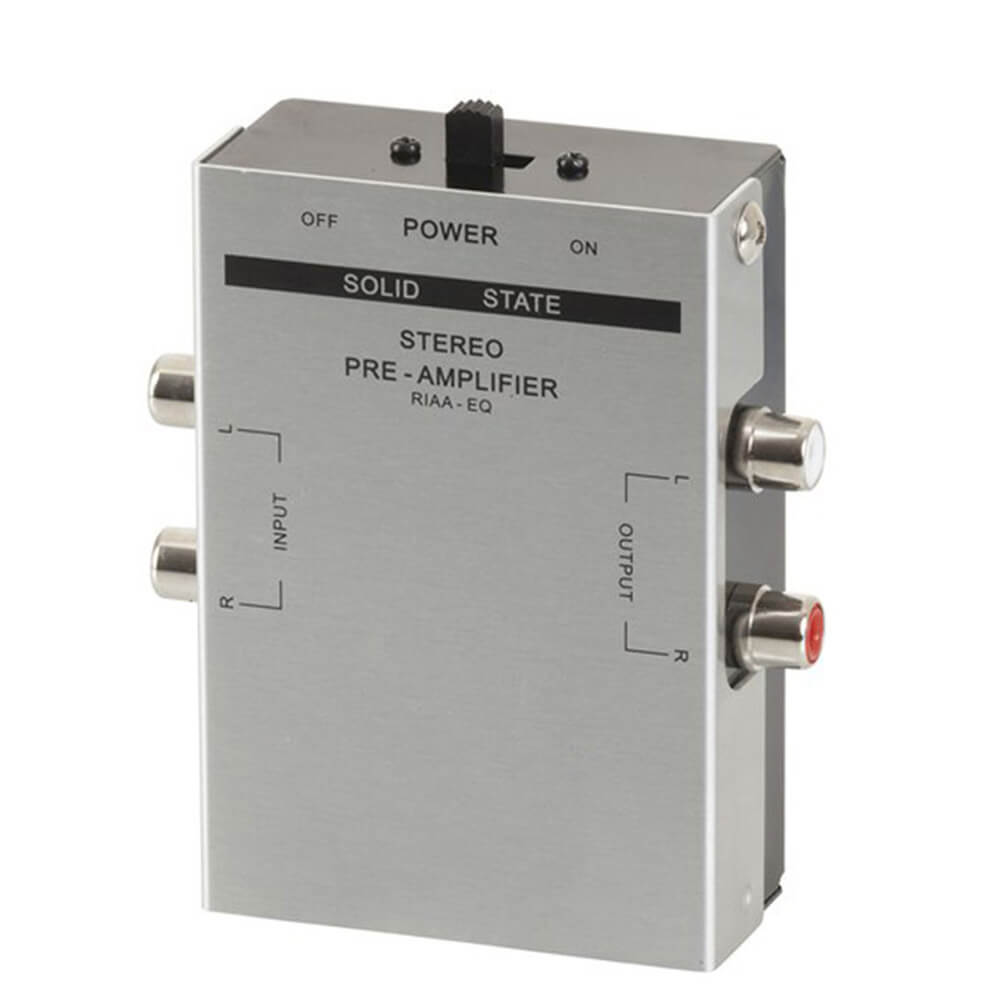

A simple 9V battery powered preamp to give audio sources a much needed boost before connecting them to speakers or an amplifier. It is useful for connecting products with magnetic pick-ups such as turntables to an amplifier. 2 RCA inputs and 2 RCA out. 1 x 9V battery required. Features RIAA equalisation circuit for accurate sound reproduction.
Specifications: • Rated input level: 3mV • Max input level: 38mV • Input Impedance: 50K ohms at 1,000Hz • Output Level: 1.8VRMS • Output Impedance: 50K ohms • S/N ratio: 50dB
Product Specifications
- Length : 91.0mm
- Width : 72.0mm
- Depth : 28.0mm
- Switcher/Converter Type : Distribution Amplifier Splitter
- Input type : Audio
- Input Connection : RCA Stereo Pair
- Number of inputs : 1.0pc
- Output Type : Audio
- Output Connection : RCA Stereo Pair
- Number of Outputs : 1.0pc
- 1 9V battery required, not included
- Length : 13.5 cm
- Width : 9.5 cm
- Height : 5 cm
