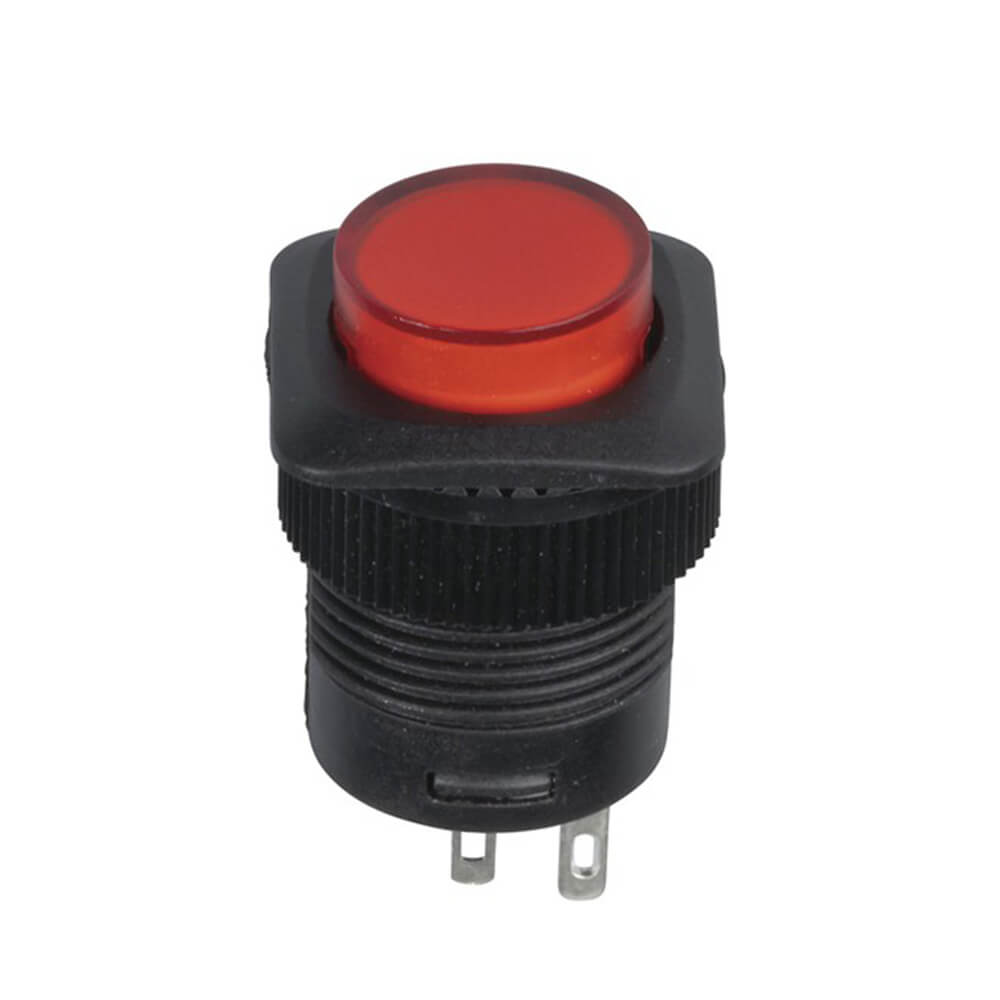

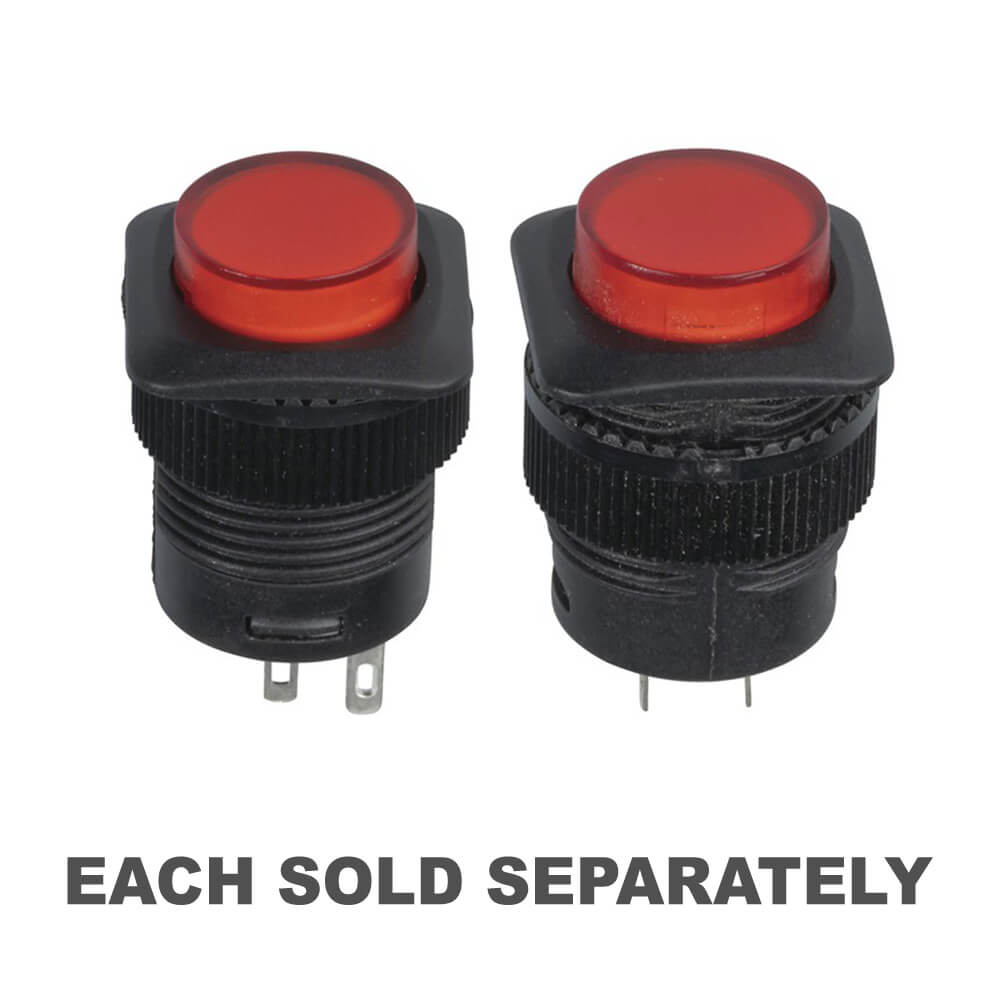

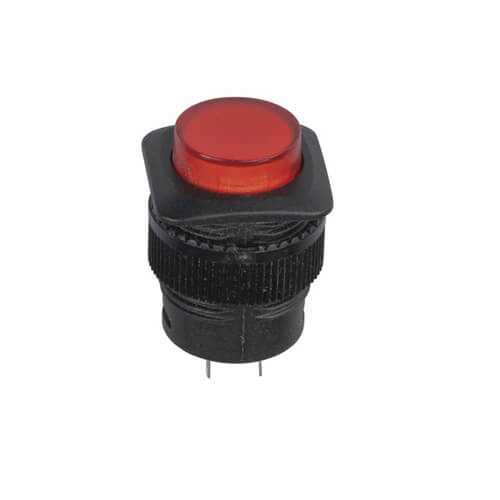

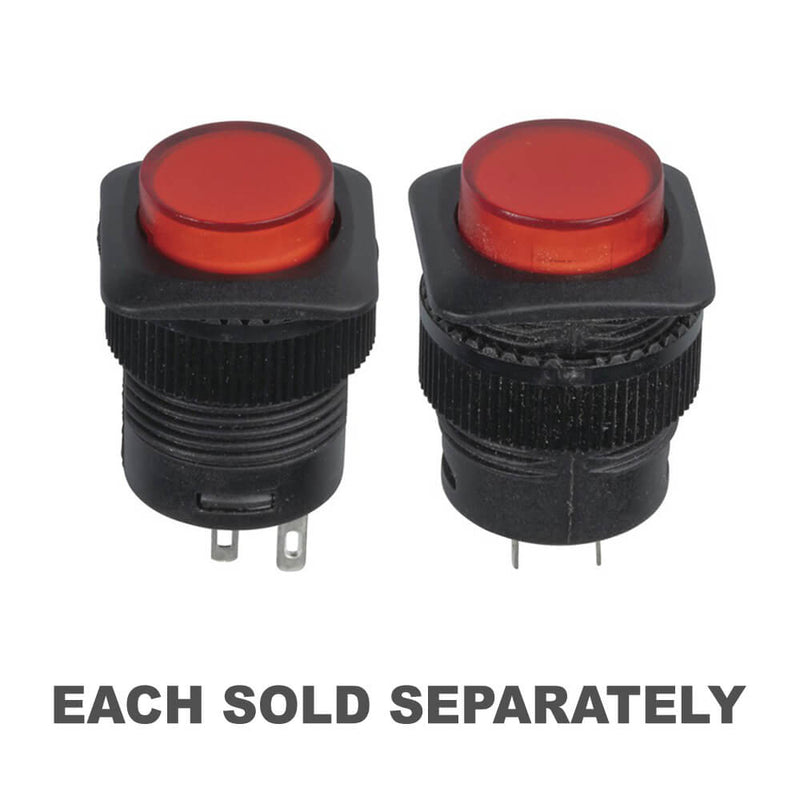

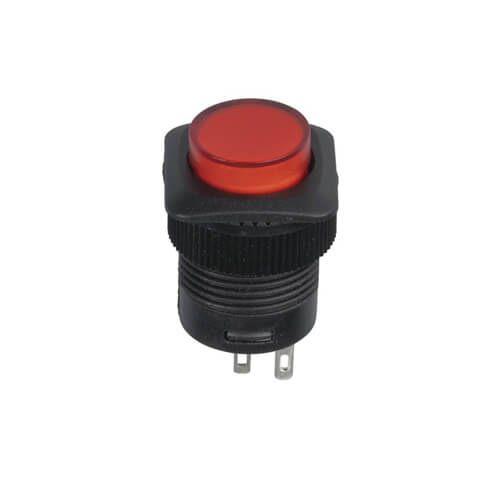

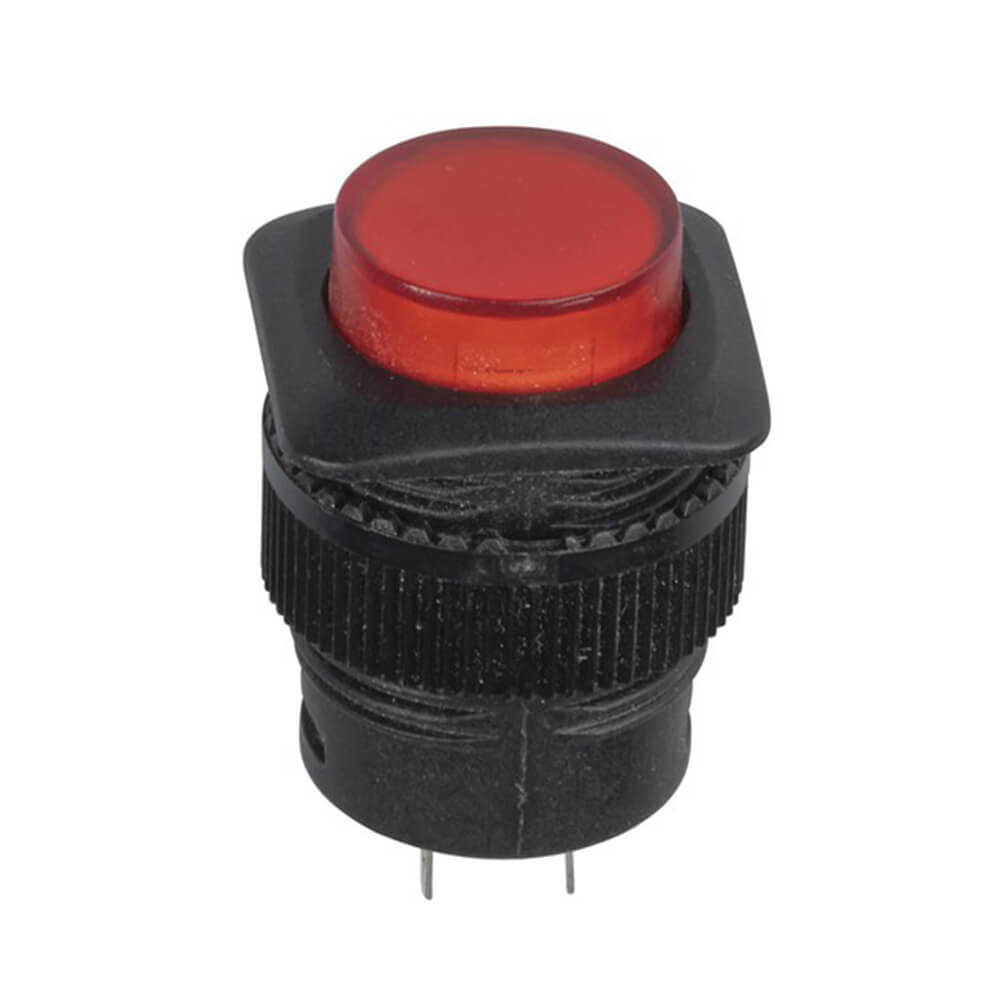

These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
Product Specifications
- AC current rating : 1.2A
- AC Voltage rating : 250V
- Nominal Voltage : 2V
- Type : 5mm Standard LED
- Illumination Colour : Red
- Connection : Solder Legs
- Length : 18mm
- Width : 18mm
- Height : 30mm
- Diameter : 18mm
- Mounting Method : Panel
- Round Mount Hole Diameter : 16mm
- Switch Type : Pushbutton
- Pole Throw Type : SPST
- Poles / Contacts : 1 pole
- Throws / Positions : 1pos
- Switch Function : Locking On/Off
- Switch Connection : Solder Legs
- Switch Colour Coded : Red
- Contact Resistance : 50mΩ
- Insulation Resistance : 100Ω
- Dielectric Strength : 1500V
- Mechanism Material : Plastic
- Length : 11.1 cm
- Width : 6.8 cm
- Height : 2.1 cm
